Frankford Arsenal Cartridge Overall Length Gage Safety Instruction Guide
Introduction
Thank you for choosing the Frankford Arsenal Cartridge Overall Length Gage. This tool is designed to help you determine the optimum overall length (OAL) for any bullet quickly and accurately. Please read this safety instruction guide carefully to ensure safe and effective use of the product.
General Safety Guidelines
- Ensure that the product is used in accordance with the manufacturer's instructions.
- Always handle cleaning rods and ammunition with care to prevent accidents.
- Use the tool only for its intended purpose as specified in this guide.
- Keep the product out of reach of children and vulnerable individuals.
- Regularly inspect the product for wear or damage before use.
- Store the product in a safe and dry place when not in use.
- Report any unsafe conditions or malfunctions to the appropriate authorities.
Specific Safety Precautions for Use
- Always wear safety glasses when working with firearms and ammunition.
- Ensure that the firearm is unloaded before inserting the cleaning rod.
- Do not attempt to use the gage with live ammunition in the chamber.
- Avoid using excessive force when attaching clamps to the cleaning rod.
- Do not leave the cleaning rod inserted in the barrel unattended.
- Be cautious of sharp edges on the clamps and cleaning rod.
Instructions for Installation and Usage
Preparation:
- Gather necessary tools: a cleaning rod, calipers, and the Frankford Arsenal Cartridge Overall Length Gage.
- Ensure the firearm is pointed in a safe direction and is unloaded.
Inserting the Cleaning Rod:
- Insert the cleaning rod into the barrel until it contacts the bolt face.

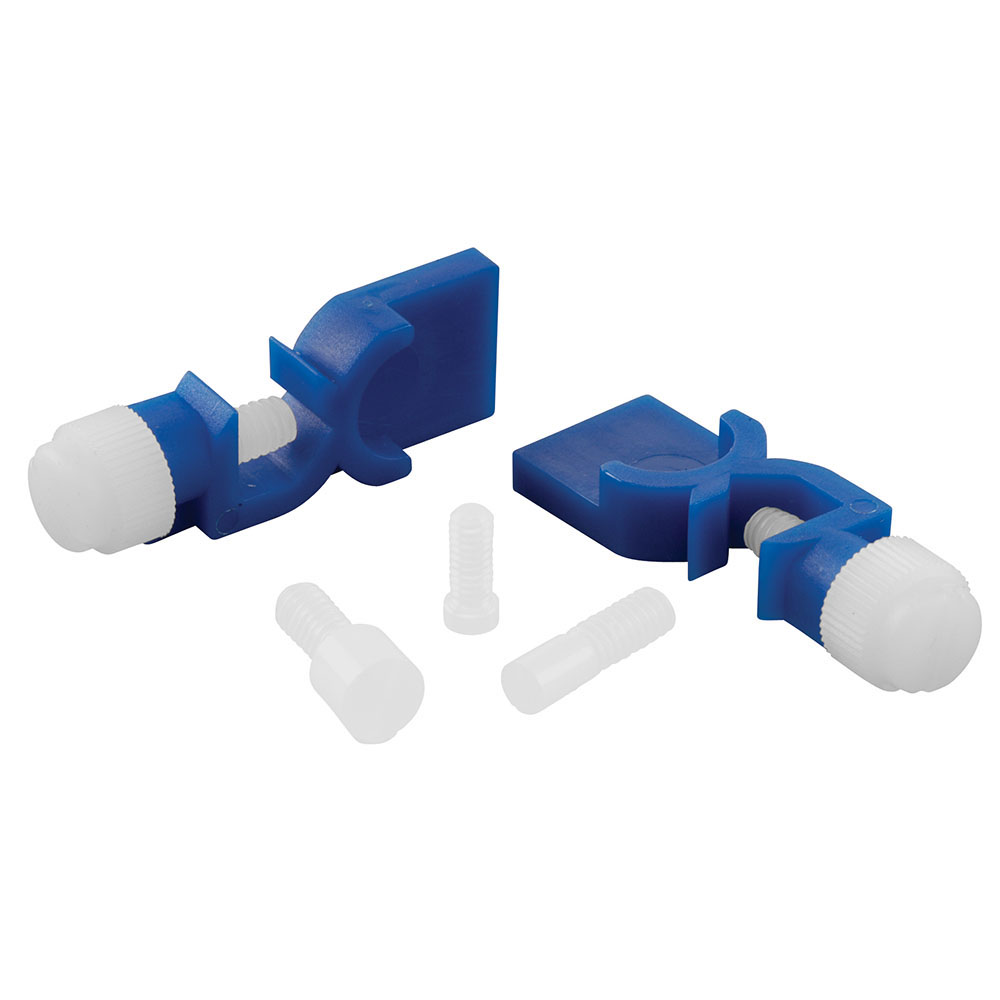

- Attach one clamp at the end of the barrel, securing the cleaning rod in place.
Measuring the OAL:
- Remove the cleaning rod from the barrel.
- Insert a dummy round into the chamber so that the bullet contacts the rifling.
- Reinsert the cleaning rod until it touches the bullet.
- Attach the second clamp at the end of the barrel.
Measuring the Distance:

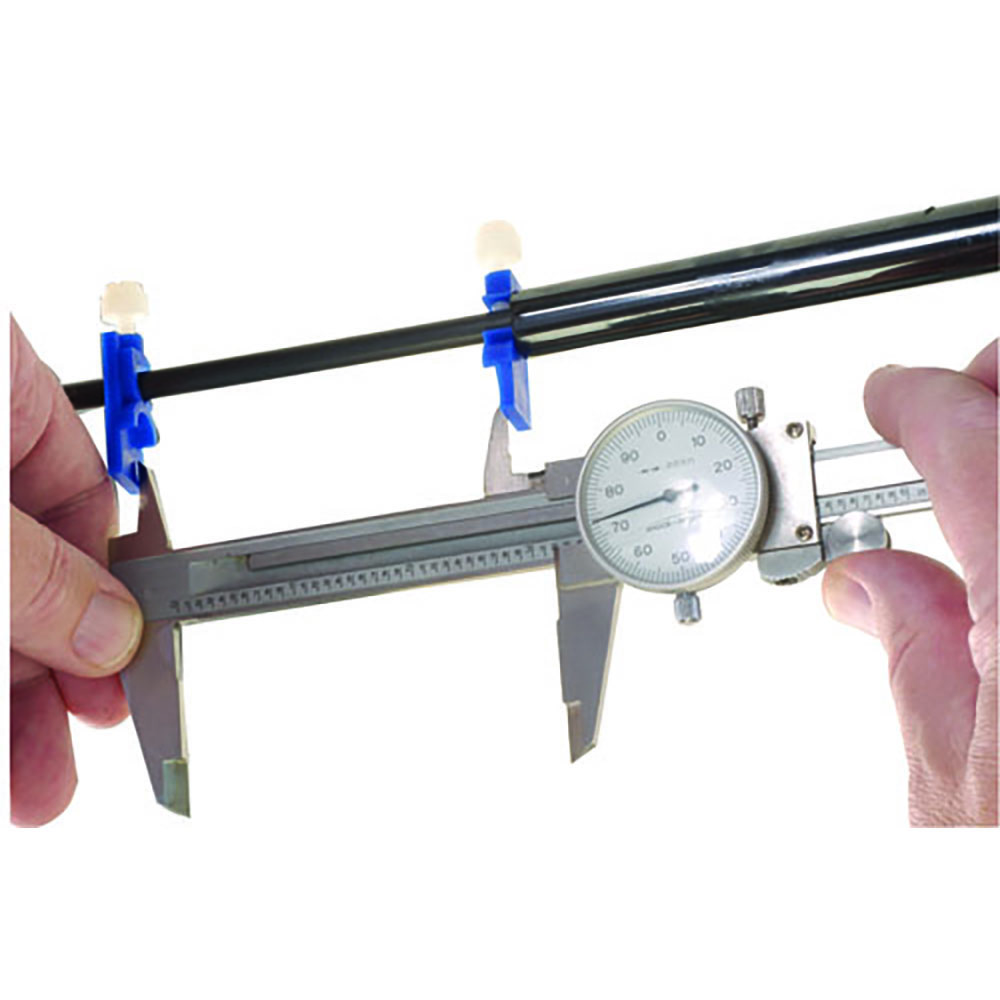

- Remove the cleaning rod and measure the distance between the two clamps using calipers.
- Use this measurement to check the seating depth setup during your reloading process.
Final Steps:
- After use, remove all clamps and the cleaning rod from the firearm.
- Clean the gage and store it properly.
Disposal Instructions
- Dispose of any damaged or broken components in accordance with local regulations.
- Do not dispose of the product in regular household waste. Check for recycling options available in your area.
Contact Information for Further Support
For any safety inquiries or support regarding the Frankford Arsenal Cartridge Overall Length Gage, please refer to the manufacturer's website or contact their customer service for assistance.
Thank you for your attention to these safety instructions. Following these guidelines will help ensure a safe and effective experience with your Frankford Arsenal Cartridge Overall Length Gage.
